Rise Above Ramps: The Vertical Logic of the S-VTS Double Deck Car Elevator
From underground basements to multi-level luxury garages, the S-VTS isn’t just a lift—it’s a vertical space revolution.
In cities where ground space is tight, ceiling height is money, and time is never enough, parking innovation is no longer optional. It’s imperative. Enter the SolidParking S-VTS, a double-deck hydraulic scissor car elevator that doesn’t just elevate vehicles—it elevates the standards of spatial intelligence.
Why Vertical Parking is the Future
We’re living in a time when urban density is skyrocketing, but traditional car access methods—like ramps or multi-story garages—take up space we simply don’t have. Car elevators are rapidly taking over luxury residential towers, retail centers, showrooms, and smart warehouses.
According to recent market analysis, the scissor car lift market is set to reach $4.5 billion by 2030, with Asia-Pacific leading growth at 8–9.5% CAGR. Within this booming market, double-deck scissor lifts like the S-VTS are setting new benchmarks.
Introducing the S-VTS: A Smarter Way to Lift
The S-VTS is SolidParking’s flagship double-deck hydraulic scissor lift, engineered for both vehicle and goods transportation between floors. With load capacities up to 20 tons, customizable platform sizing, and safety features that exceed industry norms, it’s the go-to solution for:
· Residential garages with no ramp access
· Car showrooms with vertical display floors
· Underground-to-ground level transfers
· Warehouse vehicle logistics
· Urban projects prioritizing footprint efficiency
Technical Specifications
| Specification | S-VTS Value |
|---|---|
| Lifting Capacity | Up to 3,000 KG (custom to 20,000 KG) |
| Vehicle Height Limit | 2,100 MM |
| Vehicle Width | 2,000 MM |
| Vehicle Length | 5,100 MM |
| Lift Speed | 3.5 m/min |
| Control System | Relay Control + 24V |
| Electrical Requirements | Customizable |
| Platform Options | 1–3 Platforms |
| Pit Depth | ≥ 500 MM |
| Max Lift Height | Up to 10 M |
💡 All specifications are customizable per project.
Key Features at a Glance
· Hydraulic Drive with optional four-cylinder EU standard support
· One to Three Platforms customizable per site use
· Anti-skid Platform + Hydraulic Overload Protection
· Preassembled for Rapid Installation
· Remote or Push-button Operation
· Anti-Corrosion Galvanized + Powder-Coated Finishes
· Custom Colors & Surface Integration
· Optional Safety Fence (Fall Protection)
· 12-month warranty (extendable)

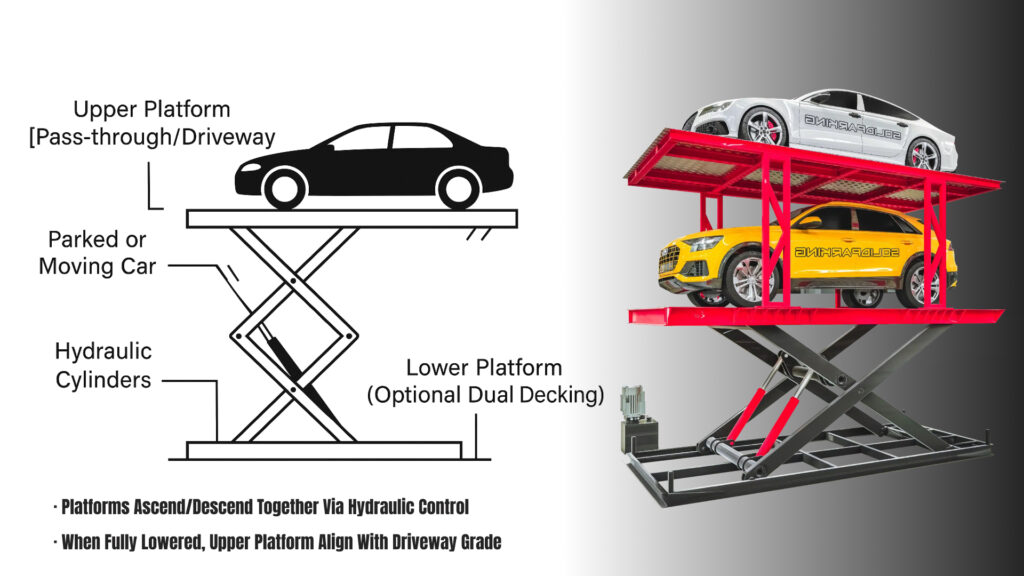

How It Works
Here’s how the S-VTS double-deck lift performs in action:
Upper Platform [Pass-through/Driveway]
——————————-
| |
| Parked or Moving Car |
| |
——————————-
|| || (Scissor Lift Mechanism)
|| || [Hydraulic Cylinders]
|| ||
——————————-
| Lower Platform |
| (Optional Dual Decking) |
——————————-
> Platforms ascend/descend together via hydraulic control.
> When fully lowered, upper platform aligns with driveway grade.
Global Benchmarking: How S-VTS Stacks Up
Let’s compare the S-VTS with other major global brands like MORNLIFT, Welmeqs, and MostarLift:
| Feature | SolidParking S-VTS | MORNLIFT | Welmeqs | MostarLift |
|---|---|---|---|---|
| Capacity (per platform) | Up to 20 tons (custom) | 3–4 tons | 3 tons | 2–5 tons |
| Max Lift Height | Up to 10 M | 2–3 M | Custom | 2.5–3.5 M |
| Platforms | 1–3 platforms | 2 | 2 | 2 |
| Preassembled Install | ✅ Yes | ✅ Yes | ✅ Yes | ✅ Yes |
| Remote Control Option | ✅ Yes | ✅ Yes | ✅ Yes | ✅ Yes |
| Anti-Skid & Overload Safe | ✅ Yes | ✅ Yes | ✅ Yes | ✅ Yes |
| Custom Color / Finishing | ✅ Powder + Galvanized | ✅ Tiling Option | ✅ Yes | ✅ Yes |
Takeaway: While many players offer quality lifts, SolidParking’s S-VTS stands out with higher lift capacity, greater vertical reach, and modular multi-platform designs.
Use Cases
🏡 Residential: Move your car from basement to ground without a ramp.
🏢 Showrooms: Display vehicles on multiple floors.
🛍 Retail Centers: Transfer vehicles/goods between parking and sales levels.
🏗 Warehouses: Transport goods or cars efficiently between storage floors.
🔄 Space-Saving Garages: Use the lift as a turntable + vertical mover.
Why Architects & Developers Love S-VTS
· Time Savings: Preassembled structure speeds up installation.
· Flexible Integration: Custom color and canopy options make it aesthetically invisible.
· Space Efficiency: Replaces ramps with just 500 mm of pit depth.
· Regulatory Ready: Designed to meet CE and global compliance standards.
· Future-Proofing: IoT/remote control options available on request.
Ready to Lift Your Space?
SolidParking’s S-VTS car elevator is more than a product—it’s an urban solution. Whether you’re a developer looking to add luxury parking to your project or a facility manager solving for tight logistics, the S-VTS is designed to adapt, engineered to last, and built to impress.
FAQs: SolidParking S-VTS
Yes. Outdoor protection and waterproofing are available for all-weather use.
Absolutely. The upper deck doubles as a stable passway when fully lowered.
Thanks to its preassembled parts, typical installation can be completed in just a few days.
Yes. Every dimension, from platform size to vertical travel and color, can be customized per project.
Minimal. Routine hydraulic checks and control testing are sufficient for long-term reliability.
Yes. You can choose between a push-button box or remote control for operation.
